Ultra Sonic Flaw Detection (USFD) in Indian Railways

The significance of Ultra Sonic Flaw Detection (USFD) in the context of Indian Railways.

• Purpose:
  • USFD is a crucial technique used to detect flaws in rails and welds for safety considerations on Indian Railways.
  • It ensures the integrity of tracks, minimizing the risk of accidents.
• How It Works:
  • USFD relies on ultrasonic waves (sound waves of 2-4 MHz).
  • A small crystal probe moves over the rail, generating and receiving reflected waves.
  • By analyzing these reflections, flaws are identified and displayed on an oscilloscope screen.
• Equipment:
  • Indian Railways employ two types of USFD equipment:
    1. Single Rail Tester: Used for over 35 years.

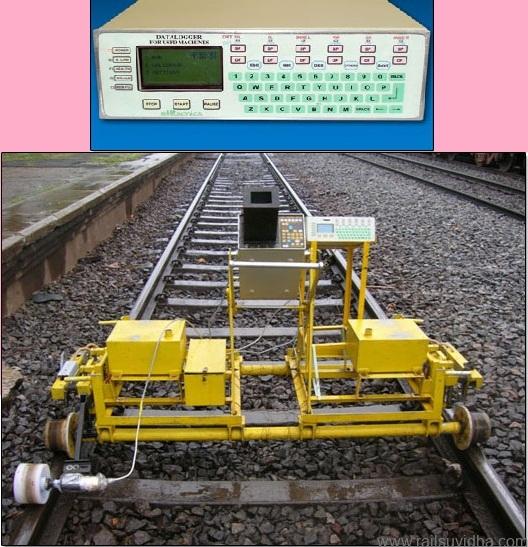

    2. Double Rail Tester: A relatively recent addition.

USFD plays a vital role in maintaining rail safety, ensuring reliable testing, and enhancing track maintenance practices.
